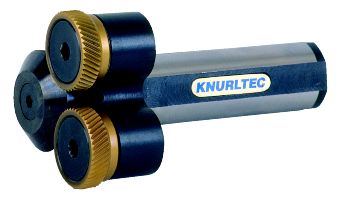

Round shank holder with through coolant for use up to a shoulder. Twin knurls for diamond knurl patters (head pivots 2° to guarantee centre line accuracy). This tool uses KW 25C20 (check) knurls, which have lapped tooth profiles to impart a better quality knurl and offer more life. Recommended for knurling pattern type RAA.




Using the knurls:
AA + AA
BL 30º + BR 30º
Knurling pattern:
RAA
RGE 30º





Reference
Knurl Size
A
B
C
D
E
F
kg
K5-20
25 x 10 x 20/16
106
80
20
10
55
36.5
0.430
K5-25
25 x 10 x 20/16
106
80
25
10
55
39
0.565
K5-32
25 x 10 x 20/16
106
80
32
10
55
42.5
0.850
K5-40
25 x 10 x 20/16
106
80
40
10
55
46.5
1.230
